Connections and Controls
Connections
10Scene Contacts features a 5-way terminal connector which is wired using the below table, with Pin 1 on the left as shown beklow. 10Scene Contacts should be wired before connecting to QuickQ Rack/Gateway Interfaces. 10Scene Contacts can be daisy chained with other 10Scene Contact units or mixed with 10Scene Wall Plates within the same chain.

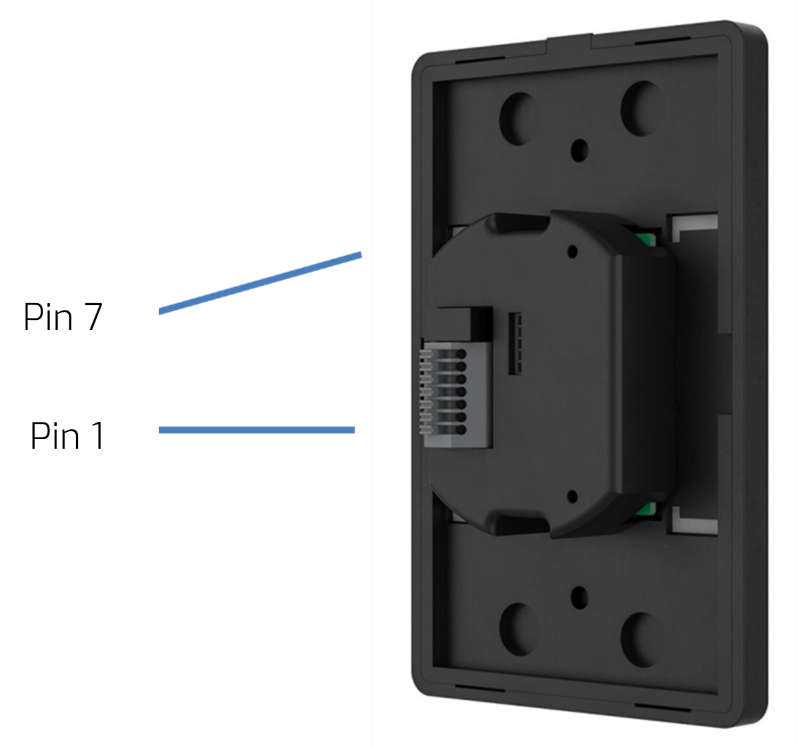

| Pin | Name | Description | Recommended wiring |
|---|---|---|---|
1 |
POWER |
Positive power |
CAT5e Orange pair (twisted together) |
2 |
TRIG IN |
Trigger input 5V logic or close contact to POWER - |
Not used for 10Scene |
3 |
10Scene H |
10Scene signal High |
CAT5e Blue/white wire |
4 |
10Scene L |
10Scene signal Low |
CAT5e Blue wire |
5 |
POWER - |
Negative power |
CAT5e Brown pair (twisted together) |
The 10Scene Out power is wired in the same way and used for linking 10Scene Contacts.
QuickQ Rack/Gateway 10Scene Wiring

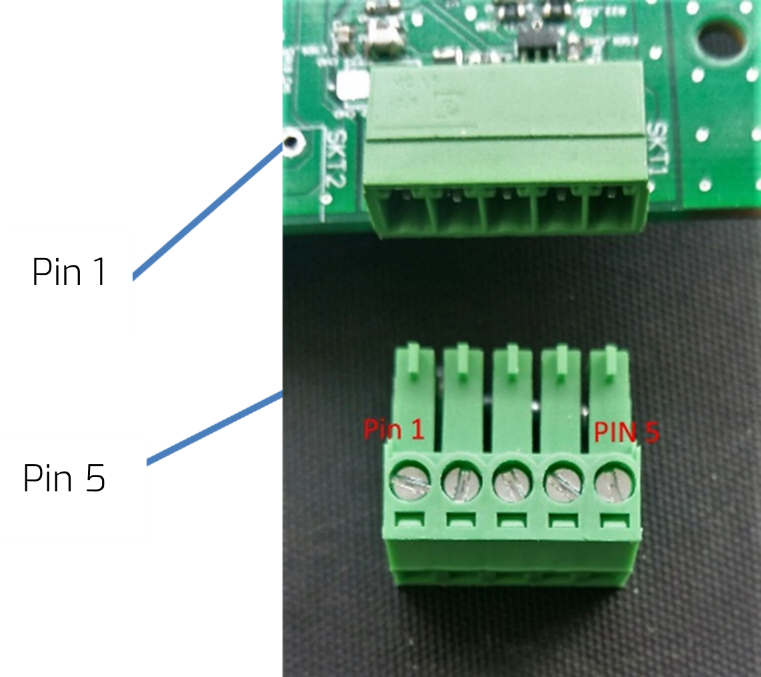

The 10Scene connector is common to the QuickQ Rack and the Gateway, is a 5-way terminal connector, with Pin 1 on the left, shown below.
| Pin | Name | Description | Recommended wiring |
|---|---|---|---|
1 |
POWER |
Positive power output to 10Scene Wall plates/Contact devices |
CAT5e Orange pair (twisted together) |
2 |
TRIG IN |
Trigger input 5V logic or close contact to POWER - |
Not used for 10Scene |
3 |
10Scene H |
10Scene signal High |
CAT5e Blue/white wire |
4 |
10Scene L |
10Scene signal Low |
CAT5e Blue wire |
5 |
POWER - |
Negative power output to 10Scene Wall plates/Contact devices |
CAT5e Brown pair (twisted together) |
When 10Scene Wall Mounts are first connected to QuickQ Rack or Gateway the front panel LEDs of each 10Scene will flash briefly indicating the unit is powered and connected.
10Scene Controls
The front of the 10Scene contact contains 10 10Scene buttons, these have dual colour LEDs used to indicate when a Scene has been stored to a button and when a Scene is active. When a button LED is Blue this indicates a Scene has been stored, but is not active, when in Red this indicates the Scene is active.
These buttons are also used to set the 10Scene Contacts ID.
The buttons are directly linked to the terminal connectors, allowing you to 'test' programming without another contacts connected and provide visual feedback if items are active or not.
